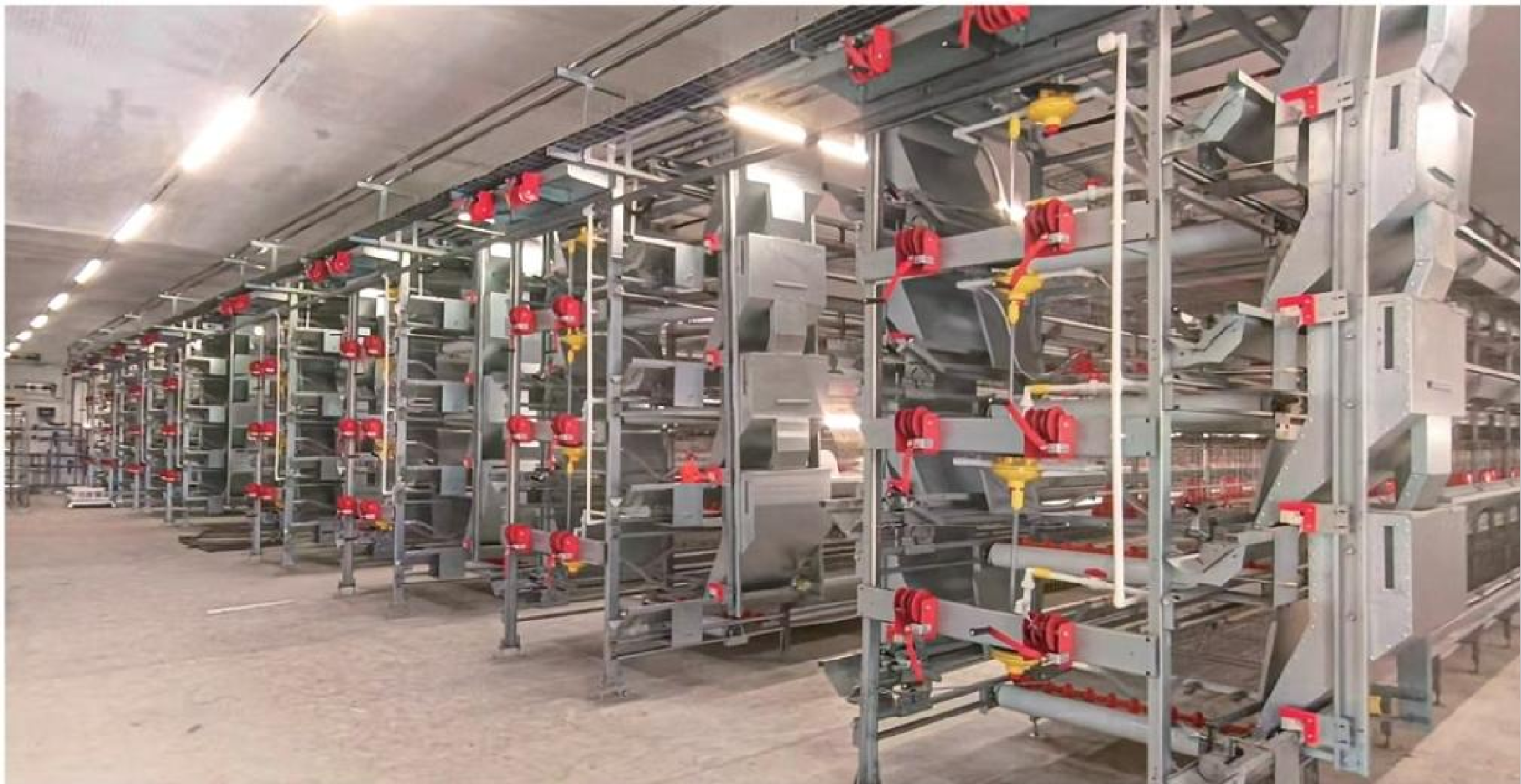

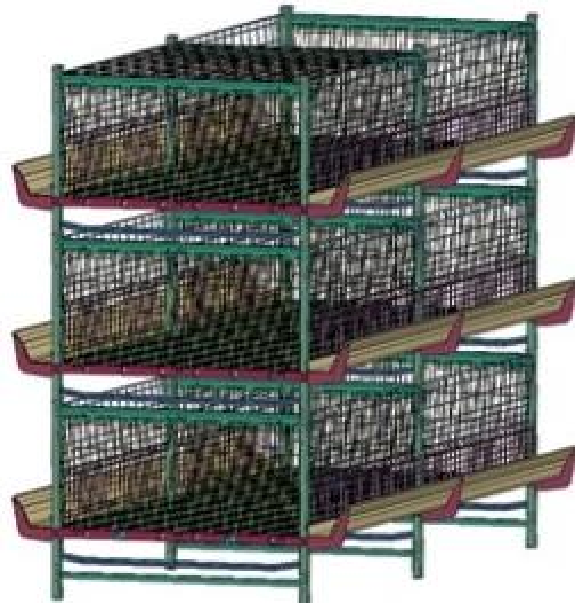

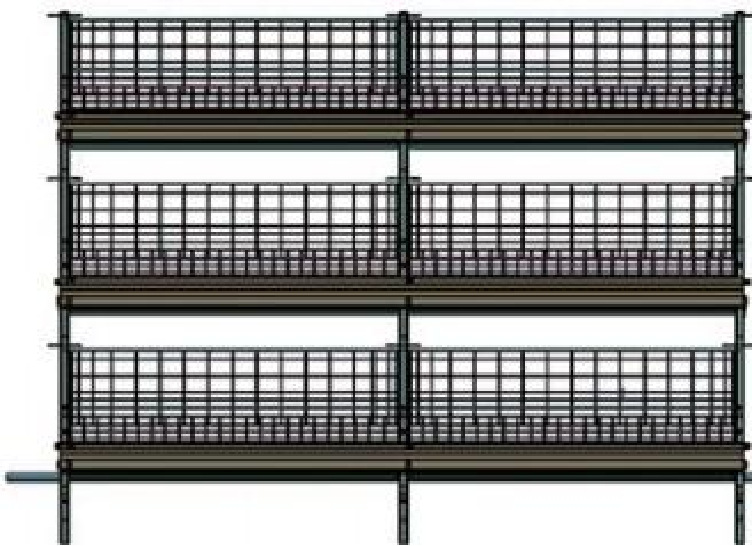

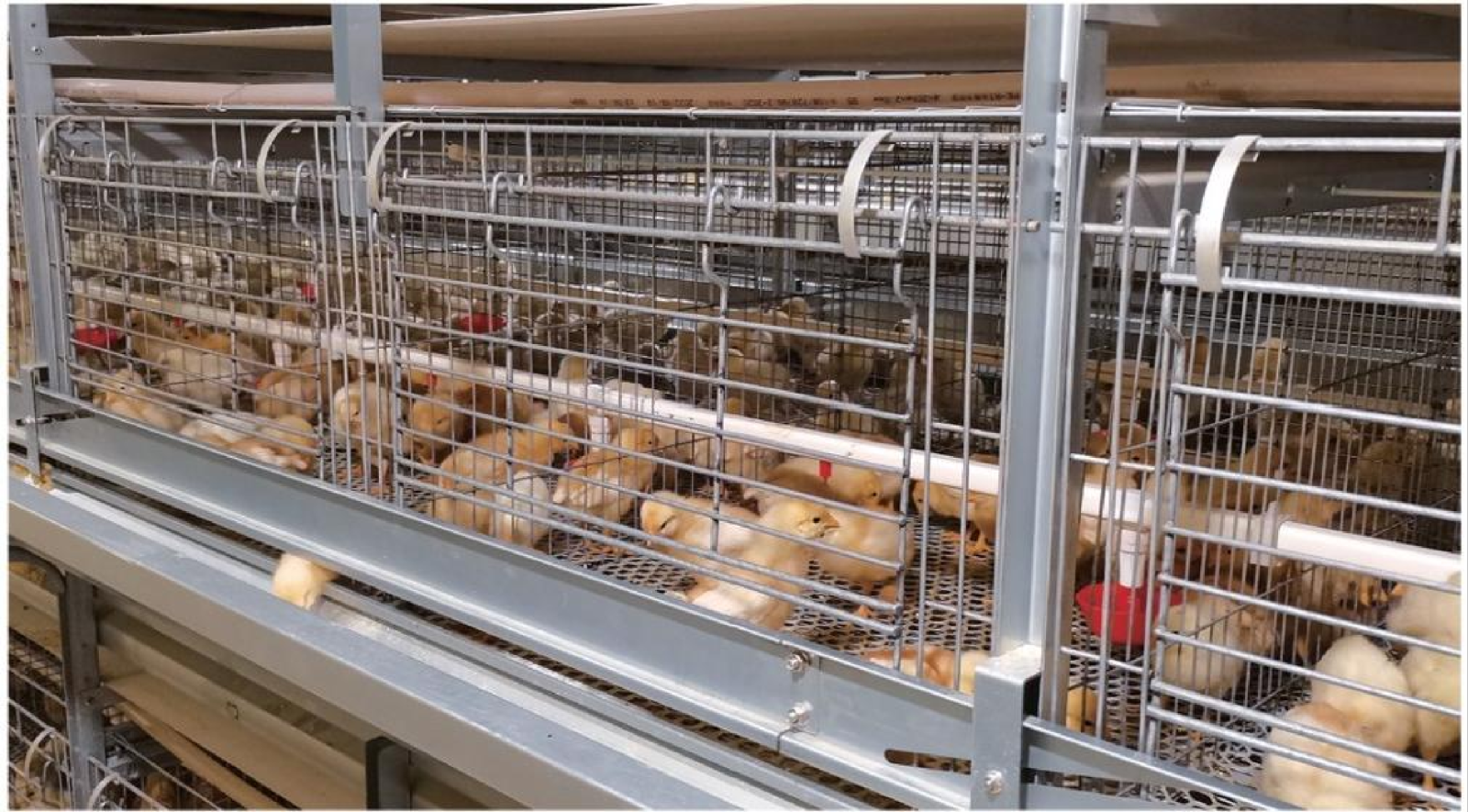

Stacked Broiler Cage System

We provide a complete,cost-effective automatic broiler cage system stacked broiler cage system is designed for large-scale,modern poultry operations.
+8618852701606
+8618852701606
info@al-fam.com
Get a Quote →
  • Stacked Broiler Cage System
  • Stacked Broiler Cage System
  • Stacked Broiler Cage System
  • Stacked Broiler Cage System
  • Stacked Broiler Cage System

Technical Parameters

With a high degree of automation,excellent ventilation,and energy-saving performance, the system integrates automatic feeding, drinking,manure removal,automatic broiler harvesting(custom made). It helps farmers achieve efficient and cost-effective broiler production.

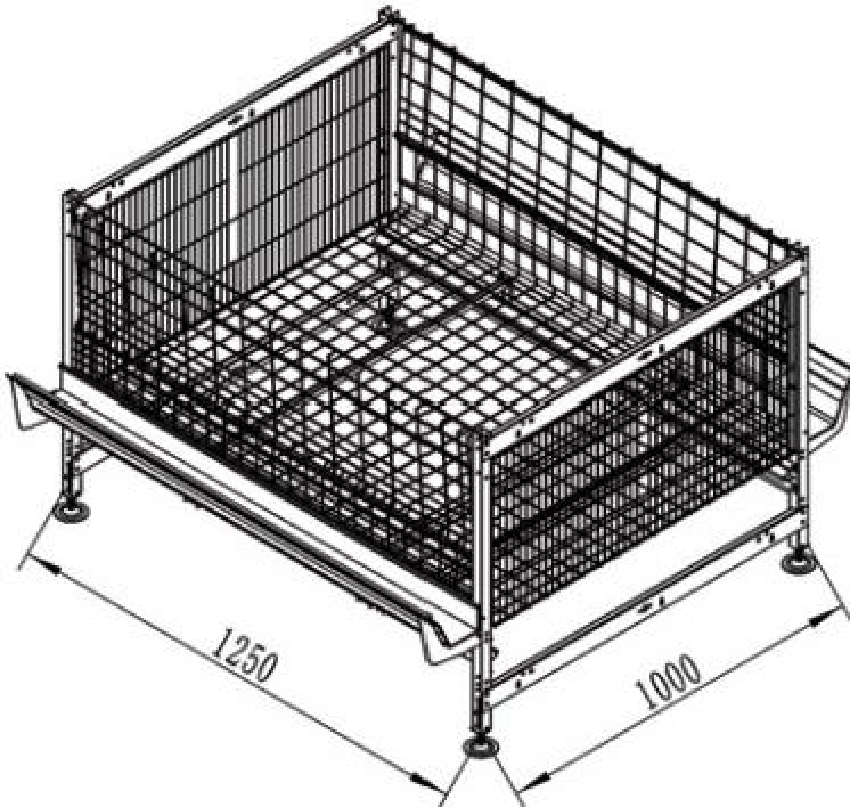

STACKED BROILER CAGE EQUIPMENT



Model


Cell length


Cell depth


Cell height


Cage size(mm)


Number

of cage layers


Total amount   of birds


AFRJ-1-1250-3


1250


1000


450


1250~1000~450


3


75


AFRJ-1-1250-4


1250


1000


450


1250~1000~450


4


100


AFRJ-1-1400-3


1400


1200


450


1400~1200~450


3


84


AFRJ-1-1400-4


1400


1200


450


1400~1200~450


4


112


AFRJ-2-1400-3


1400


1400


450


1400~1400~450


3


117


AFRJ-2-1400-4


1400


1400


450


1400~1200~450


4


156


Tier description:Catwalks will be added to system with 6 tiers and above;

The feeding methods have two options:trolly feeding and chain feeding


Performance Characteristics

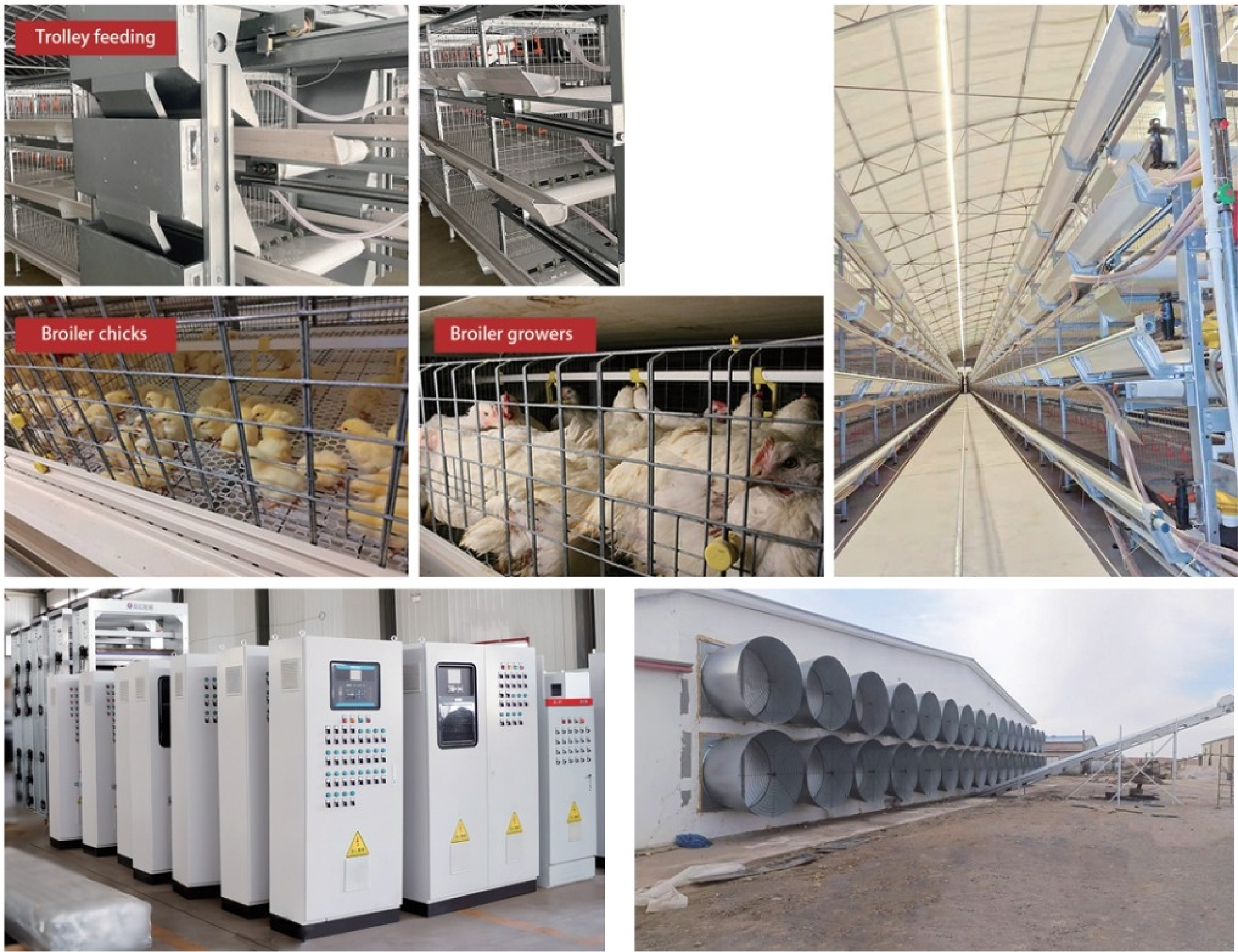

图片3(3)

Environmental control cabinet

Fan

One-Stop Poultry Equipment Supply

Smart Automation·Empowering Efficient Animal Husbandry

Professional poultry house design

You only need to tell us the number of chickens to be raised,and our design team will recommend a suitable model and design the size of the chicken house for you.



One-stop service provided

Including project design,quality control,installation,after-sales service,and breeding guidance.



Lifetime Agricultural Consultant

We provide technical training and comprehensive customer support to allcustomers,enabling you to maximize the use of your automated poultry farm.

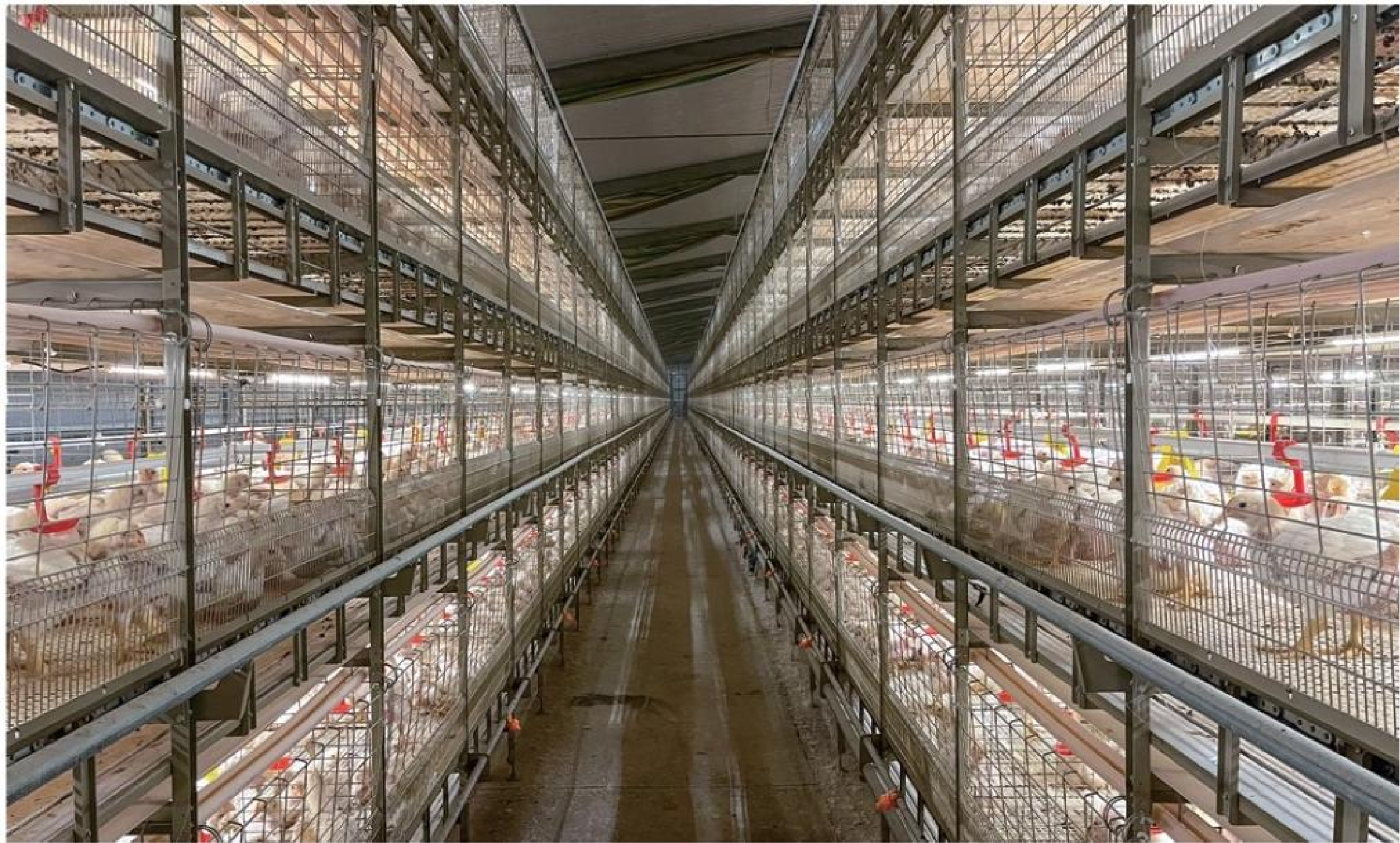

Automatic Broiler Harvesting System:

图片3(4)

Key Advantages:

1.Premium Cage Structure
A variety of cage types are available to meet different customer needs. Stocking density:20 broilers per square meter (2.5 kg each);about 50 kg/square meter. Material and coating: Hot-dip galvanized wire mesh and frame,with a galvanizing amount of 275g/square meter,has excellent corrosion resistance and long service life. Welfare-oriented design:The one-piece anti-drop buffer net protects the broilers and prevents manure from falling into the lower feed trough.

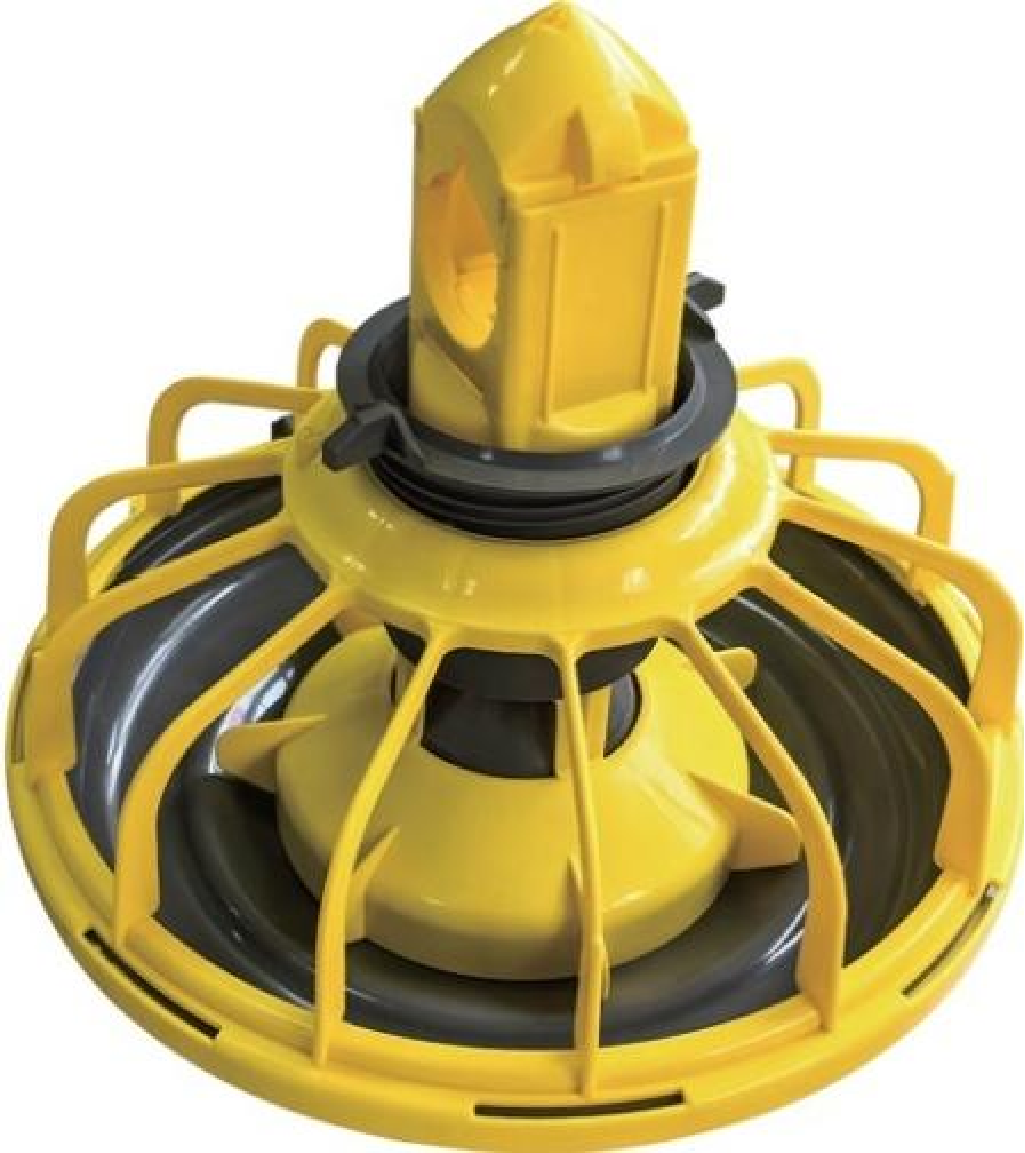

2.Automatic Feeding System

Intelligent monitoring:Equipped with feed bin and weighing system to monitor daily feed consumption. Components:Hot-dip galvanized/PVC feeding pipe, imported spiral auger to ensure even distribution of feed. Control options:Manual or timed feeding.



3.Automatic Drinking System

Precision Supply:Each floor is equipped with nipple drinkers, and the corresponding number is configured according to the cage type to effectively stimulate and replenish water. Height Adjustment:The lifting system on each floor can be adjusted to ensure that the drinker is always at the correct height. System Components:including water flow regulator,filter and pressure gauge to ensure stable performance.

图片3(5)
图片3(6)

4.Automatic Manure Removal System

Longitudinal Belt:Uses 1.0-1.2mm thick PP belts;smooth surface,strong tension,and accurate alignment ensure clean removal. Cross Conveyor:PVC belt with a hot-dip galvanized frame; seamless welded,highly durable for long-term operation.

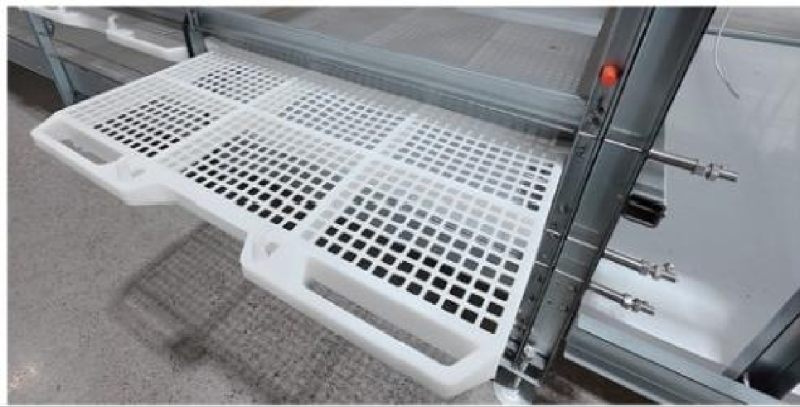

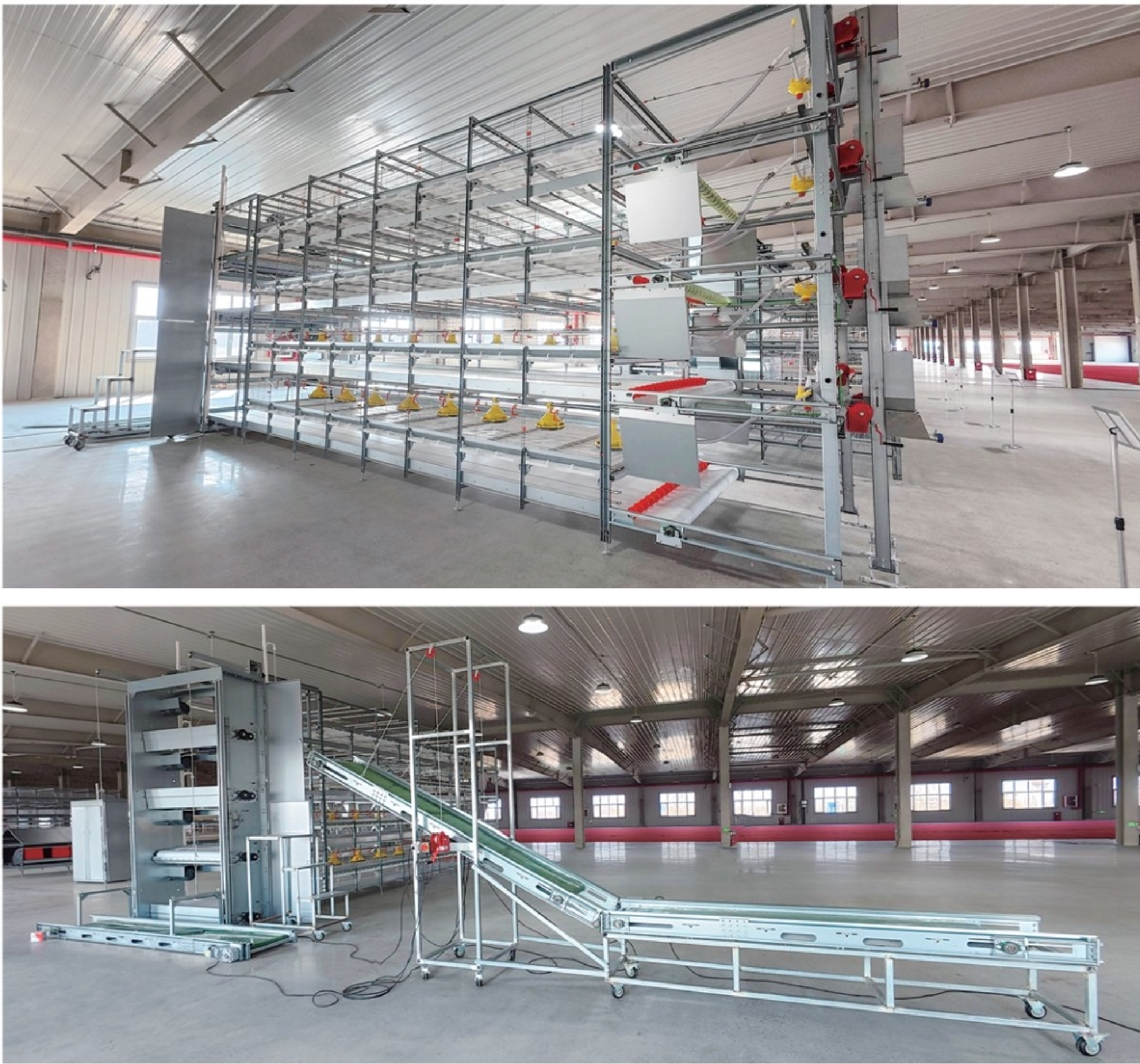

5.Automatic Broiler Harvest System

Flexible Options:Two types available-sliding slat type and new chain-type collection system. Safe &Efficient:Soft PP manure slats prevent injuries to chickens;slats can be pulled out to let chickens fall onto the conveyor. High Capacity:600mm-wide PVC conveyor belt;collection speed up to 6,000 birds/hour.Birds under target weight can remain for 1-2 extra days.

6.Environmental Control &Ventilation

Cooling &Airflow:High-efficiency cone fans,alldynamically balanced. Protection Features:Cooling pads with anti-rodent mesh;air inlets with bird-proof netting;air deflectors prevent cold stress. Energy Saving:Integrated environmental control system for precise and efficient climate management.

图片3(7)
