Stacked Broiler Cage System

We provide a complete,cost-effective automatic broiler cage system stacked broiler cage system is designed for large-scale,modern poultry operations.
+8618852701606
+8618852701606
18000000000@qq.com
Get a Quote →
  • Stacked Broiler Cage System
  • Stacked Broiler Cage System
  • Stacked Broiler Cage System
  • Stacked Broiler Cage System
  • Stacked Broiler Cage System

Technical Parameters

With a high degree of automation,excellent ventilation,and energy-saving performance, the system integrates automatic feeding, drinking,manure removal,automatic broiler harvesting(custom made). It helps farmers achieve efficient and cost-effective broiler production.

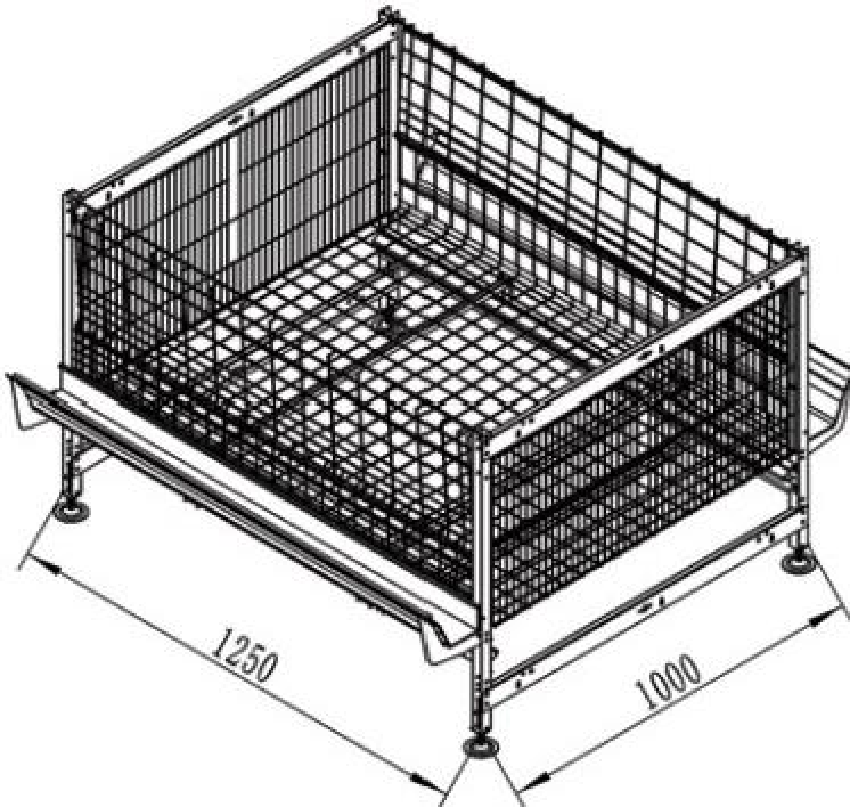

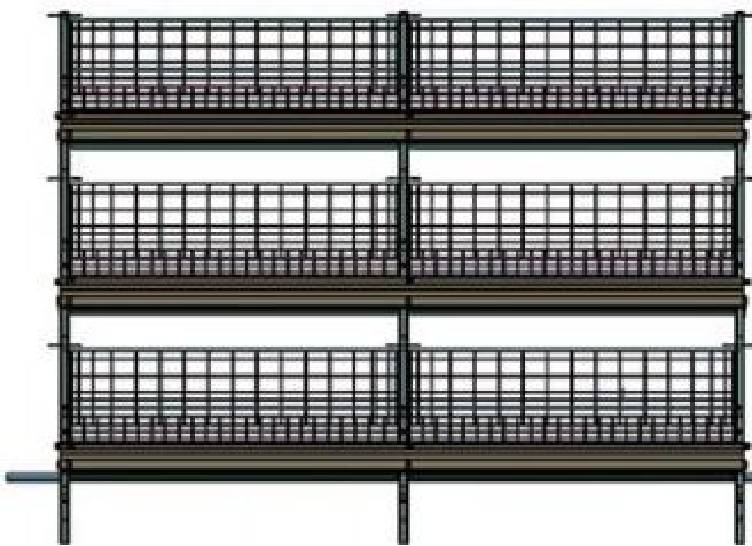

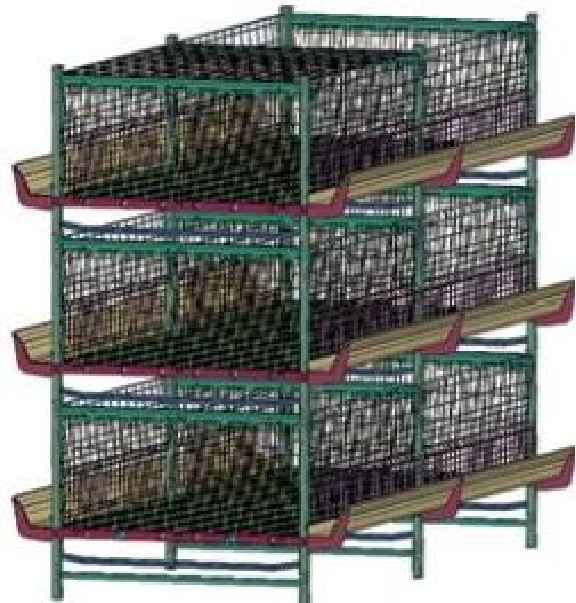

STACKED BROILER CAGE EQUIPMENT



Model


Cell length


Cell depth


Cell height


Cage size(mm)


Number

of cage layers


Total amount   of birds


AFRJ-1-1250-3


1250


1000


450


1250~1000~450


3


75


AFRJ-1-1250-4


1250


1000


450


1250~1000~450


4


100


AFRJ-1-1400-3


1400


1200


450


1400~1200~450


3


84


AFRJ-1-1400-4


1400


1200


450


1400~1200~450


4


112


AFRJ-2-1400-3


1400


1400


450


1400~1400~450


3


117


AFRJ-2-1400-4


1400


1400


450


1400~1200~450


4


156


Tier description:Catwalks will be added to system with 6 tiers and above;

The feeding methods have two options:trolly feeding and chain feeding
